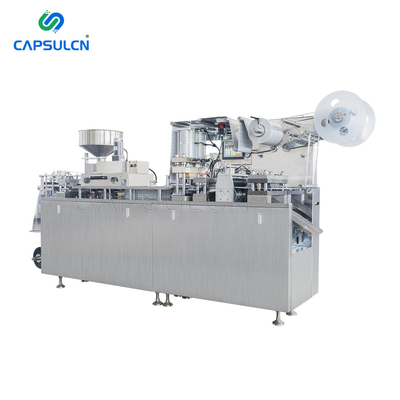

Automatic Food DPP 250 Alu Alu Pill Tablet Capsule Blister Packing Machine

1 Set
MOQ
$25,499.00(1 - 2 Sets) $24,224.00(3 - 4 Sets) $22,949.00(5 - 7 Sets) $21,667.00(>=8 Sets)
Price
Automatic Food DPP 250 Alu Alu Pill Tablet Capsule Blister Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Blister Packaging Machine
Applicable Industries: Chemical, Food, Medical
Showroom Location: United States, Germany, Mexico, Spain
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Gearbox
Condition: New
Application: Food, Commodity, Medical, Machinery & Hardware
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/220V 50Hz
Dimension(L*W*H): 3000*730*1600mm
Weight: 1400kg
Warranty: 1 Year
Key Selling Points: High Productivity
Cutting Frequency: 15-45 Times/min
Capacity: 9600strip/h
Max Shaping Areas And Depth: 250*120*15mm
Stroke: 30-130mm
Standard Sheet: 80*57mm
Air Pressure: 0.4-0.6kw
PVC Hard Pieces: 0.15-0.5*260mm
PTP Aluminum Foil: 0.02-0.035*260mm
Cooling Of Mold: Tap Water Or Recycling Water
Noise (dBA): < 75dBA
After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States, Germany, Mexico
After-sales Service Provided: Video Technical Support, Online Support
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Export Standard Wood Pack
Supply Ability: 5 Set/Sets per Month
Product Description
Flat-plate blister packaging machine is a kind of special equipment for PTP/PVC or PTP/PTP compound sealing packaging of drugs (including tablets, capsules and ampoules), food, medical instruments and similar materials. Due to positive pressure forming, flat pressing heat sealing, the finished blister sheets are even and smooth, which makes this machine favored by the whole industry.
Products Description

DPP-250 Automatic Blister packing machine

Our DPP series automatic blister packaging machine adopts variable frequency speed control and the integrated automatic control technology of machinery, electricity, light and air. Its innovative design strictly meets the requirements of "GMP" standard of the pharmaceutical industry. This series of machines have many functions, such as waste detection and rejection, automatic photoelectric alignment, adjustable stroke length, modular station structure, dealing with both PTP/PVC and “PTP/PTP”, and capsule U-turn for arrangement by color. With continuous improvement and upgrade, this series have reached the domestic leading level in comprehensive performance, making it more practical and economical.

Drive diagram：
Main features:
1）Our DPP series aluminum-plastic packaging machine can be disassembled for transportation, and it is easy to assemble by applying cylindrical pin for positioning and screws for fastening.
2） The molds are pressed and clamped by the pressing plate, which makes assembly and disassembly very convenient.
3）The main motor adopts variable frequency speed control: The corresponding blanking times should be set according to the stroke length and the feeding difficulty of the filling materials. (The blanking times can reach 50 times / min).
4） The mechanical arm clamping traction mechanism is adopted to ensure stable operation and accurate synchronization. The stroke length can be adjusted in the range of 30~120mm, which means that the plate size can be designed at will within this range. Because of aligning and heating by contact, the heating power and temperature are reduced, the energy is saved and the stability of plastic sheet is increased.
5）The forming heating plate closes and opens automatically. The start-up time can be delayed after the heating plate is put down, so no more than one sheet of materials will be wasted.
6）It is equipped with cylinder and chequered plate at the heat seal station. When the machine is stopped, the cylinder will
automatically raise the chequered plate, which helps avoid the deformation of blisters caused by thermal radiation and also facilitates the cleaning of checkered plate. At the same time, it plays a buffer role in overpressure, which contributes to prolonging the service life of the machine.
7）The upper and lower chequered stripes with netted dots cooperate for heat sealing. As there is equal stress on both sides, the sheets are smoother and the sealing performance is improved.
8） If PVC runs out or breaks off, the alarm rings automatically and the machine shuts down immediately. Besides, the machine is equipped with emergency stop device, which improves the safety of operators during the process of debugging and replacing molds.
9）The feeding hopper and all the other parts in contact with materials are made of stainless steel and non-toxic materials, meeting the requirements of GMP.
Reach Me for More Details
Details Images
Product Paramenters
Blanking frequency
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-140mm(adjustable)
The max forming area and depth
240mm×130mm×26mm
Power of forming heating
600W
Air Consumption
3KW
Main motor power
1.5KW
Machine Voltage
380V/220V 50Hz
Weight
1500KG
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
