Home /Products/Form Fill Seal Machine/Factory Heating Type Fully Automatic Blister Tyvek Pet Filling Dialyzing Sterile Medical Paper Sealing Machine

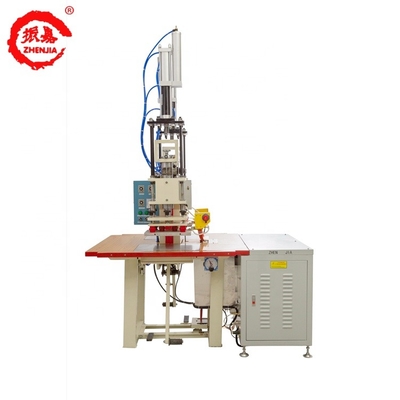

Factory Heating Type Fully Automatic Blister Tyvek Pet Filling Dialyzing Sterile Medical Paper Sealing Machine

1 Set
MOQ
$2,971.00(1 - 4 Sets) $2,871.00(5 - 8 Sets) $2,771.00(>=9 Sets)
Price
Factory Heating Type Fully Automatic Blister Tyvek Pet Filling Dialyzing Sterile Medical Paper Sealing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Voltage: 220V/380/Customization
Frequency: 27.12 Or 40.68MHZ, 27.12MHZ/40.68MHZ
Welding Area: 350*700mm / 400*700mm
Dimensions: 1070*1680*1560mm
Usage: High Frequency Pvc Bag Welding
Warranty: 1 Year
After-sales Service Provided: Online Support, Video Technical Support
Key Selling Points: Easy To Operate
Applicable Industries: Manufacturing Plant
Weight (KG): 420 KG
Power (kW): 8KW
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Band: Zhenjia
Machine Type: Pvc Frequency Welding Machine
Temperature Range: 50-300℃ Adjustable
Welding Time: 0-10s Adjustable
Input Power: 15KVA
Output Power: 5KW/8KW/10KW/15KW
Rectifier: Silicon Diode
Oscillation Tube: 7T69R/7T85R/8T85R/3069R
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Showroom Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: Packing type: wooden case Packing size: 1590*1120*1625mm Our company packing is accordance in export standard.
Supply Ability: 500 Set/Sets per Month Pvc Frequency Welding Machine
Product Description
Specification
Product Name
Heating Type Blister Tyvek Pet Automatic Fully Auto Load Dialyzing Sterile Medical Paper Sealing Machine
Type
PVC Frequency Welding Machine
Model
ZJ-8K-TR
Voltage
380V
Input Power
15KVA
Output Power
8KW
Oscillation Tube
7T69R
Rectifier
Silicon diode
Frequency
27.12 or 40.68MHZ
Temperature Control Range
50-300°C Adjustable
Welding Time
0-10s Adjustable
Maximum Electrode Spacing
160-220mm
Mold Installation Form
Cross chuck 30cm
Machine Trachea
dia 8cm
Pneumatic Cylinder
80*75
Air Compressor Suggestion
60L gas tank
Machine Weight
420KG
Machine Dimension
1070*1680*1560mm
Table Size
1070*1210mm
Working Size
350*700mm or 400*700mm
Electric Box Size
670*960*800mm
Floor To Machine Working Table
800mm
Click "here" to get more details!
Product Description




Oscillation Tube
The filament of the oscillator tube in our company's high-frequency barrel uses the high-quality filaments imported from Austria, which is more efficient, and produces one product every 5s-7s on average.



Battery Valve
PVC Frequency Welding Machine uses the 4V310 solenoid valve makes the machine more powerful and the imprinted products are more complete.



Protect Shell
Use a one-piece protective shell to hide electrical components and wires, reduce accidents caused by dust accumulation, and protect electrical components and operators.
To get "More Information" about mold.

ZhenJia Machinery Equipment Co.,Ltd

Our company specializes in the production of automatic high-frequency machines, automatic blister packing machines, ultrasonic welding machines, and other automation equipment for 19 years. Our customers throughout Southeast Asia, the Middle East, Europe, the United States, and other regions and countries and won the domestic and foreign customers widely praised including Hisense Group, Big Yangtze River Group, Shenzhen DJ Innovation company, Foshan Electrical Lighting Company, and other well-known enterprises in China. We strictly carry out 21 quality inspection procedures for all delivered equipment and uphold the quality of development, insist on the innovative refinement of the company philosophy to do the industry benchmark. We have high precision molds CNC processing machines and other equipment for customers to produce high-frequency molds, ultrasonic molds, blister bakelite molds. We own an independent "Zhenjia" brand and has obtained multiterm national patents. All the quality of our machines has passed CE certification and ISO9001 certification.
Business Partner
Packing & Delivery
1. Wooden frame packaging is adopted to prevent the machine from being damaged by collision during transportation. 2. Professional stevedore to ensure the safety of the machine. 3. Fast and safe transportation channels to ensure that you can receive your goods on time.
FAQ
Q1. Why our price is so lower?
We are one factory, we seek for long time cooperation, not just one time. Keep little profit, also we are
glad to do business with every customer.

Q2. How to ensure the cargo quality?
1. All systems of the machine are independently developed and the main control parts are imported from
Europe, the United States and Japan, with high stability.
2. All machines have the CE certification issued by the European Union.
3. Machinery exported to Europe and the United States, Southeast Asia, the Middle East, Nepal and
other countries and regions.

Q3. The warranty of machine?
All the machines come with a one-year warranty.

Q4. It is the first time that I order this machine, How can I operation it?
This is a very simple machine, we will send you instructions, email, video or phone to teach you how to
operate it.

Q5. How can I have a Proforma Invoice or Quotation?
Quotation and PI will be sent.
1. I will send the quotation for you when I quote the price.
2. If you confirmed the order, I will send the PI for you.

Q6. Is this machine need mold?
Yes, it does.All machines need molds to function properly.
