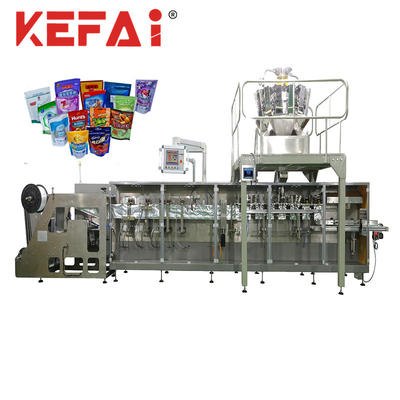

Horizontal KEFAI Atomatic Food Candy Nut Cookie Stand Up Pouch Forming Sealing And Filling Packing Machine

1 Set
MOQ
$75,000.00(1 - 5 Sets) $65,000.00(>=6 Sets)
Price
Horizontal KEFAI Atomatic Food Candy Nut Cookie Stand Up Pouch Forming Sealing And Filling Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop
Weight (KG): 200
Showroom Location: Canada, United States, France, India, Mexico
Condition: New
Function: FILLING, Wrapping, Capping, Sealing, BOXING
Application: Food, Beverage, Chemical, Machinery & Hardware
Packaging Type: Cartons, Bottles, Film
Packaging Material: Plastic, Paper, Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 4.7KW/ 220V 50/60HZ
Dimension(L*W*H): 2040*1800*2140mm
Warranty: 1 Year
Key Selling Points: Flexible Manufacturing
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC
Production Capacity: 40bag/min, 50bag/min
Name: Pouch Packing Machine
Packing Speed: 40-80 Bags/Min
Usage: Be Used For Packing Different Pouch
Warannty: 12 Month
Controlled: PLC+ Touch Screen
After-sales: Rovided: Free Spare Parts, Field Installation, Commissioning
After Warranty Service: Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: KEFAI-liquid packing machine usually export package!
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description

Features

We have standard configuration for general industry, also we can customize special configuration for you.
1.Control System: PLC programmable computer controller , touch screen, photocell sensor, encoder and inverter with high integration guarantee reliable operation.

2.Advanced photoelectric sensor tracking system and servo motor puller for precise bag width and position of film.

3.Independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.

4.easy and fast adjustment of change over, smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production.
Specification
Pouch Width
90mm-180mm
Pouch Height
110mm-250mm
Max Volume
1000ml 1#
Speed
40-60 ppm
Packaging Film:
Laminated film
Accuracy
<±1.5% 
Reel film
500mm
Electricity Consumption
9 KW
Air Consumption
400NL/min
Weight
2100KG
Size (L×W×H)
6000mm×1100mm×1500mm Ž
Production Features
1. Film unwinding
2. Bottom Hole Punching
3. Pouch Forming
4. Film Guide
5. Bottom Seal
6. Vertical Seal I
7. Vertical Seal II
8. Tear Notch
9. Photocell
10. Servo Advance
11. Cutting
12. Pouch Catching
13. Pouch Opening
14. Air Flushing
15. Filling I
16. Filling II
17. Top Seal I
18. Top Seal II
19. Top Seal III
20. Finished Product
21. Outlet
Bag sample
